Offering drill-and-blast consultation and implementation services, RESPEC serves the global mining industry with an innovative line of Carlson Software’s Precision-Mining products and reliable world-class systems and sensors for high-performance, three-dimensional (3D) mine and quarry scanning, measuring, mapping, surveying, and positioning for surface and underground environments.
RESPEC closely collaborates with Carlson Software—the industry leader in quality software solutions for land development professionals in the surveying, civil engineering, mining, and construction fields since 1983—to serve the global mining industry with consultation and implementation services and an expanded line of Carlson products for drill and blast projects. RESPEC represents Carlson in North America and elsewhere by providing training on the Carlson Laser Measurement Devices (LMD) product line as well as testing and selling LMD equipment. Today, Carlson’s comprehensive mine and quarry measurement and mapping tools (both hardware and software) have expanded significantly and are used worldwide by mining professionals.
RESPEC delivers high-performance, precision mapping using Carlson’s reliable world-class systems and sensors for mining in difficult conditions where speed, accuracy, and safety matter. Using Carlson Mine hardware products, RESPEC’s team meets extreme challenges for mapping, surveying, positioning, and measuring for both surface and underground environments.
RESPEC’s Explosives Engineering Team specializes in solving critical drilling and blasting issues safely and effectively. Our dynamic partnership team combines advanced knowledge with innovative technology solutions that support clients and takes full control of the mine site. RESPEC’s integrated technology field services provide mining clients with a holistic understanding of their site, support mine planning decisions, improve safety, and reduce overall mine costs for one-time or ongoing projects.
In consultations for new or existing blasting projects, mining clients benefit from direct access to RESPEC’s highly skilled and experienced team, who specialize in surface- and underground-specific, drill and blast training for drillers, blasters, engineers, and management. We provide on-site training in and demonstrations of the following Carlson Mining product line, which has been developed in over 35 years of fieldwork and widely adopted in the global mining industry for reliability and ease of use.
Blasthole Survey Systems
As drilling and blasting clients know, no borehole is perfect. Boreholes frequently deviate from the intended path and cause problems and cost overruns. Factors contributing to borehole deviation can include the level of driller experience, equipment quality, drill angle, and local geology. Before the Carlson Boretrak (Boretrak) innovation, no highly accurate or easy way to measure deviation existed. Manual and mechanical methods lacked accuracy and produced too little data to be mapped against the drilling plan for comparison. Revealing the precise path of the borehole, RESPEC uses both rodded and cabled variations of the Boretrak system to help mining clients make accurate assessments regarding ore volume.
Even with today’s precision-mining advances, mine and quarry managers may make the mistake of proceeding to blast on the basis of the drilling plan instead of using actual drilling results. If engineering and geotechnical works proceed on the assumption that holes are straight, they typically encounter costly project delays later.
To reduce deviation, error, and costly mistakes, RESPEC uses rodded and cabled Boretrak deviation measurement systems to complete a wide range of drilling-related projects quickly and efficiently. Our professional field team captures highly accurate 3D measurement data needed to make sound on-site decisions quickly and safely. Reliable data from Boretrak also reduce costs for mining clients because employing surveyors or other costly personnel is unnecessary.
The Boretrak borehole-deviation measurement system is a simple-to-use, portable system to measure the deviation of boreholes. Carlson features rodded and cabled versions of the Boretrak system. Rodded Boretrak is the primary workhorse for uphole and downhole operations in areas that are affected by magnetic interference, and the handheld, cabled Boretrak is only used for downhole operations but can cover large areas that are not affected by magnetic interference. Both systems can be carried by one operator. Cabled Boretrak comes in a single PELI TM case that weighs less than 5 kilograms (kg) in total.
Both Boretrak products provide an easy way to audit drilling activity accurately and can be used in multiple applications, including quarry and cast blasting, exploration and foundation drilling, dam pinning, construction, piling, and engineering works. Boretrak confirms the actual path of the borehole after drilling. Sites that use preblast borehole-surveying tools report improved site safety, increased productivity, and lower operating costs. Boretrak provides accurate 3D survey data on boreholes and drilling activity and calculates borehole deviation. Boretrak sensors are accurate to ±0.1 degree for reliable data.
Boretrak systems are designed to work reliably in extreme environments. A high degree of dust- and waterproofing is engineered into both the rodded and cabled Boretrak. Boretrak performs reliably and accurately in extreme conditions with wet weather, water-logged ground, submersion, temperature extremes, and sand and dust. For both systems, Boretrak Viewer Software makes quarry operations more efficient by using data from portable and robust laser-scanning systems. The feature-packed Boretrak mobile application makes drilling and blasting safer, faster, and more profitable than ever before.
MORE ABOUT BORETRAK
Mine and quarry owners need a fast, reliable way of measuring borehole deviation to obtain actual drilling data that saves money on breakage, transport, explosives, and fuel costs. Boretrak can alleviate costly delays on engineering or geotechnical projects and enhance the safety of employees and those living near blast sites. Boretrak can be deployed from ground level or underground sites to safely obtain 3D data that describe drilling activity.
Boretrak works with Carlson’s Quarryman Pro to ensure compliance with quarrying legislation that protects local residents, employees, and property. Measuring borehole deviation mitigates the risks associated with incorrect borehole data, such as fly-rock caused by poorly designed blasts or intersection with underground utilities in engineering works.
By ensuring accurate data for better decision-making on the site, Boretrak’s handheld Control Display Unit interfaces with dedicated PC software and enables users to audit drilled holes and produce reports in minutes. The results can be issued to on-site drillers on an as-needed basis. Improved on-site drilling operations become data led, responsive, and better integrated with Boretrak.
RESPEC uses Boretrak to map entire sites. Boretrak data can easily be georeferenced and related to a local coordinate system. Clients can compare today’s results with historical data and view data from a range of systems—notably Carlson’s Quarryman Pro. Using these precision-mining tools, RESPEC removes guesswork and data gaps.
The dust- and waterproof Boretrak system is rugged and designed for extreme conditions. The portable, lightweight systems, which are designed for use by a single operator, are easy to transport across sites and between locations and easy to deploy. Because boreholes frequently deviate, RESPEC uses Boretrak to increase the success and safety of a blast and minimize risk to the client’s blast plan. Systems are available with wireless control and connectivity to support drilling, blasting, and geotechnical operations where safety, productivity, and profitability are key.
Clients use Carlson Boretrak® systems to:
- Avoid borehole deviation, risks, and associated costs.
- Work safely and improve an area’s safety.
- Improve blasting efficiency.
- Survey for exploration and foundation drilling.
- Enhance quarry blasting results.
- Produce optimum fragmentation.
- Control engineering performance.

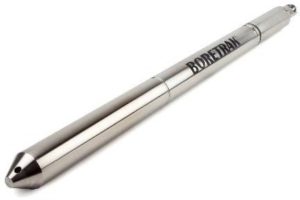

Carlson Rodded Boretrak®
RESPEC uses the rodded Boretrak to survey uphole and downhole drilling activity in underground mining operations affected by magnetic interference. The Carlson rodded Boretrak is a cost-effective, rugged borehole-deviation surveying system that is compact, lightweight, and portable and measures borehole deviation in areas of ferrous materials. The unique retractable design of the rodded Boretrak further enhances the reliable and versatile probe system that offers significant advantages over cabled systems for many applications. RESPEC uses the rodded Boretrak system to confirm the actual path of the borehole after drilling. Boretrak sensors are accurate to ±0.1 degree for reliable data. Boretrak calculates precise burdens and supports safer blasting with fewer fly-rock incidents; reduces secondary breakage; improves crusher throughput; and minimizes environmental impacts, including airblast, noise, and vibrations.
The Boretrak mobile software enables users to view, monitor, and report on borehole deviation accurately while in the field. The lightweight rod-deployment system allows users to survey holes in minutes, and the ruggedized personal digital assistant (PDA) controller takes readings at regular intervals. Users can view reliable 3D borehole data reports in the field. After use, sections of the rodded system retract and fold neatly back into the compact unit. Rodded Boretrak provides more functionality than the cabled Boretrack. The rodded Boretrak probe and rod system can be hand carried by a single operator.
Clients use the Carlson Rodded Boretrak® to:
- Quickly survey borehole deviations in uphole and downhole operations.
- Survey areas affected by magnetic interference where the cabled Boretrak and competitor’s products cannot operate.
- Reduce deviation, error, and costly drilling mistakes.
- Capture highly accurate measurements in 3D data.
- Make on-site decisions quickly and safely.
- Improve safety, productivity, and profitability.
- Minimize environmental impacts.

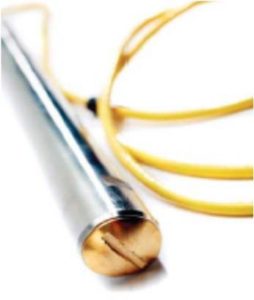

Carlson Cabled Boretrak®
RESPEC uses the cabled Boretrak to quickly cover large areas when surveying downhole-only drilling activity in underground mining operations that are not affected by magnetic interference. The super-compact, lightweight, handheld cabled Boretrak is a cost-effective, rugged borehole-deviation surveying system that captures highly accurate and reliable 3D data in underground mines and quarries. RESPEC uses the cabled Boretrak to confirm the actual path of the borehole after drilling.
As an alternative to the rodded Boretrak, the highly portable cabled Boretrak is deployable to depths of 65 meters (m). The cabled Boretrak system is often used by RESPEC’s field team and quarry customers who require a quick and simple borehole-surveying device for downhole deployment. With the cabled Boretrak, RESPEC’s field team works quickly and safely across large sites without transporting bulky surveying equipment.
Boretrak sensors are accurate to ±0.1 deg for reliable data, which supports on-site decision-making. Boretrak calculates precise burdens and supports safer blasting with fewer fly-rock incidents, including reduced secondary breakage, improved crusher throughput, and minimal environmental impacts (e.g., airblast, noise, and vibrations).
The Boretrak mobile application enables users to view, monitor, and report on borehole deviation accurately while in the field. The lightweight rod-deployment system allows users to survey holes in minutes, and the ruggedized PDA controller takes readings at regular intervals. Users can view reliable 3D borehole data reports in the field. The cabled Boretrak comes in a single, protective PELI™ case that weighs less than 5 kg in total.
Clients use the Carlson Cabled Boretrak® to:
- Quickly survey borehole deviations across large downhole-only operations.
- Survey areas not affected by magnetic interference.
- Capture highly accurate 3D data of mine and quarry underground.
- Deploy to depths of 65 m.
- Reduce error and costly drilling mistakes.
- Make better on-site decisions.
- Improve safety, productivity, and profitability.
- Reduce the need for transporting bully equipment.
Laser Scanning Systems
Carlson Void Scanner for Cost-Effective Cavity Monitoring
RESPEC helps mining clients access the inaccessible with Carlson’s Void Scanner and real-time, three-dimensional (3D) laser-surveying system. Our drill and blast team uses Void Scanner to enhance project capability, minimize safety risks, and improve site management. With high-speed scanning times, Void Scanner simplifies operations and speeds up decision-making for the client.
As a specialized and ruggedized instrument, Void Scanner uses time-of-flight laser measurements to map the shape, position, and spatial location of voids to ensure the safety of personnel, the protection of stock, and underground sites. Void Scanner data are used to ensure more efficient and profitable mineral extraction. With accurate, up-to-the minute site maps, clients can monitor progress, improve planning, reduce wastage, maximize extraction, and accelerate project timescales.
Featuring multistation project capability, Void Scanner software enables mining clients to scan from multiple locations and view the resulting scans in real time for a complete 3D representation of the site. With a setup time of only 10 minutes, Void Scanner’s simplified operation is quick: unpack the system, connect cables, mount the boom, and start the software. Void Scanner is essential equipment for obtaining daily void volume calculations.
Void Scanner minimizes safety risks with flexible deployment options and wireless communication to a PC via an optional Wi-Fi box. Operators can retreat to a remote position for increased safety and view results during scanning. By comparing the scanned stope with the design data, mining clients use Void Scanner to improve site management with better monitoring and control of ore loss and dilution. Scans also provide a record of daily productivity.
With faster scanning times, Void Scanner speeds up the decision-making process. Each Void Scanner data point has XYZ coordinates to allow accurate georeferencing with the mine’s coordinate system. Scans can be stitched together in real time for an instant visual of the site. With a scan rate of 200 points per second, a horizontal scan extent of 360 degrees, and a vertical scan extent of 270 degrees, the Void Scanner enables users to complete a detailed scan of 1-degree increments in under 12 minutes.
Clients use Carlson Void Scanner to:
- Solve underground surveying challenges with versatile deployment and application.
- Monitor cavities with intuitive, user-friendly software.
- Enhance underground project capabilities with specialized accessories.
- Meet extreme conditions with its world-class, engineered, ruggedized product design.
Carlson C-ALS® Borehole-Deployable Laser Scanner for Concealed Cavity and Void Scanning
RESPEC helps mining clients gain access to concealed cavities using the C-ALS (Cavity Auto-scanning Laser System), which is a unique, specialized, underground laser-cavity monitoring system that quickly and safely enables mapping of previously inaccessible parts of mines. The C-ALS cavity monitoring system is used in a wide range of applications where an inaccessible void exists and accurate data are required to monitor excavations, assess risk, or design solutions. C-ALS provides more detailed, accurate data than alternative technologies (e.g., ground-penetrating radar) and is the only borehole-deployable laser solution on the market. With new underground mapping capabilities, C-ALS helps clients scan inaccessible underground workings safely, quickly, and reliably.
With an IP67 rating to ensure occupational safety, C-ALS operates in wet, humid, and dusty conditions and withstands submersion to a depth of 1 m, which reduces the risk of damage if C-ALS is accidentally deployed into a flooded cavity. The unique 50-millimeter (mm) diameter of C-ALS allows access to voids via narrow boreholes, which minimizes scanner deployment time and cost. The 360-degree spherical coverage provides a full view from a single scan with no blind spots. The C-ALS laser scanner also enables remote-control operation to safely survey potentially dangerous underground voids. Clients can view the scan results in minutes, instead of days.
Using Cavity Profiler software that features modeling, manipulation, and export capabilities, the C-ALS system enables clients to collect the data needed to protect worker safety, show compliance, and report to project stakeholders in greater detail. Cavity Profiler is an intuitive software that makes C-ALS quicker and easier to use by guiding operators through the deploying and scanning process. Cavity Profiler also ensures accurate costing of planned works, and helps clients devise more efficient programs of work and show progress on new projects. The system ensures that design and engineer solutions are based on accurate data and minimizes disruption, drilling, and disturbance in populated areas. WORDS 314
Clients use Carlson C-ALS® to:
- Map inaccessible underground areas.
- Obtain data when manned entry is not safe or possible.
- Ensure employee safety.
- Reduce the risk of gathering accurate spatial data underground.
- Reduce the challenges of accessibility and cost.
- Plan new projects and assess the risk with design solutions based on accurate underground data.
- Transform productivity with accurate maps of voids.
- Create design plans that improve efficient projects.
Carlson Quarryman® Pro Laser Scanning for Quarry Surveying and Stockpile Monitoring
RESPEC uses the rugged, portable Quarryman Pro as a must-have rock-profiling and laser-scanning and measurement system of choice for mine and quarry clients worldwide. Carlson’s most robust system builds on over 20 years of experience in delivering laser-scanning solutions to the quarrying industry worldwide. Quarryman Pro benefits mining clients with improved worker and environmental safety as a result of accurate data and safer blasts. As a means of process checking, stockpile monitoring, and checking operations for legal compliance, the system also increases profitability by cutting the costs of transport hire, fuel, explosives, and secondary breakage. Quarryman Pro captures the data needed to make decisions that increase productivity, improve postblast workflow, and minimize costs. Quarryman Pro calculates the stockpile volume quickly to produce fast and accurate material stock valuations.
Quarryman Pro is an easy one-man operation with minimal training that offers safe, long- or short-range surveying without using reflectors for blast planning, stockpile measurement, and whole site mapping and provides an excellent return on investment. Datasets are compatible with industry-standard blast-design and mine-mapping software package. Quarryman Pro is robust and has been carefully designed and tested to operate in the toughest conditions. This versatile system offers several applications that gives clients the ability to quickly and simply collect data to support all areas of operation.
Housed in a single PELITMcase and weighing only xx kg, Quarryman Pro is portable and easily transported between sites. The scanning unit attaches quickly and securely to its tripod for rapid deployment and use. Quarryman Pro measures and records millions of data points directly to a USB drive and does not require external PDAs or computers in the field for data storage. Users can choose between a manual point-and-shoot mode and an automatic laser-scanning mode (250 points per second). Entire rock faces can be scanned in minutes.
By using the separate Quarryman Viewer software on a laptop or PC, the collected data can be reviewed as a detailed 3D model, which can be edited, analyzed, and exported to specialist packages for blast design or mine survey. The intuitive software for Quarryman allows users to export data into CAD packages to plan for new extraction programs or installations. The data used in Quarryman Pro applications improve efficiency in quarry operations.
New improvements to the latest Quarryman Pro feature a larger, full-color screen for better visibility that is readable in sunlight. Data are now saved to a USB rather than a flashcard for improved data transfer and increased storage. A GPS mount is built into the handle so that the Quarryman Pro can be geo-positioned quickly and easily map point cloud data to other quarry surveys. Carlson has also designed fewer clicks per operation to increase working speed, and an auto-day and time-stamping to file names for quick search and retrieval were added. The operating temperature and processing power of the system have been increased. The new lithium-ion battery is not only lighter but provides a longer scan time. The battery issues a warning when low and shuts down automatically if not recharged; however, the system retains data for retrieval later even if the device shuts down automatically.
Clients use Carlson Quarryman® Pro to:
- Increase profitability, productivity and efficiency for quarry operations.
- Capture 3D data needed to make better decisions.
- Improve worker and environmental safety with safer blasts.
- Stockpile monitoring to produce fast and accurate material stock valuations.
- Ensure legal compliance.
- Improve postblast workflow and minimize costs.
RESPEC’s product line is geared towards making businesses and organizations better, faster, smarter, and safer. Our products benefit clients in need of greater efficiency, accuracy, and cost savings.
