Continuous Monitoring to Protect a Community

Projects

Client

New Mexico Oil Conservation Division

Timeline

2009–Ongoing

Location

Carlsbad, New Mexico

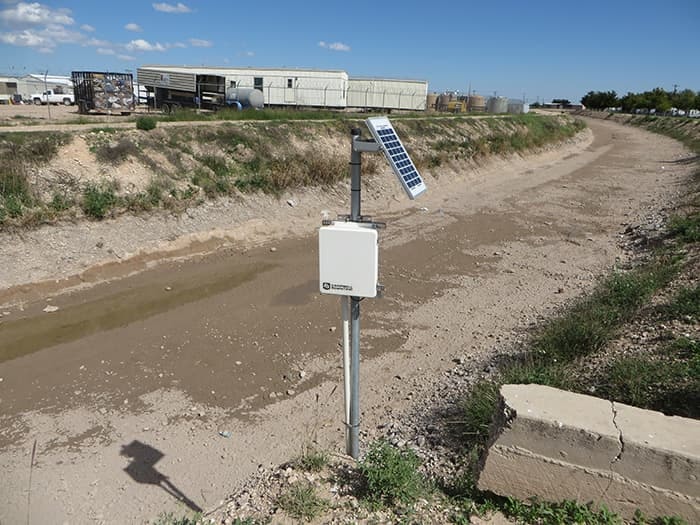

A solar-powered monitoring device is installed on a pole beside a mostly dry, muddy drainage canal, with industrial buildings and vehicles visible in the background under a blue sky.

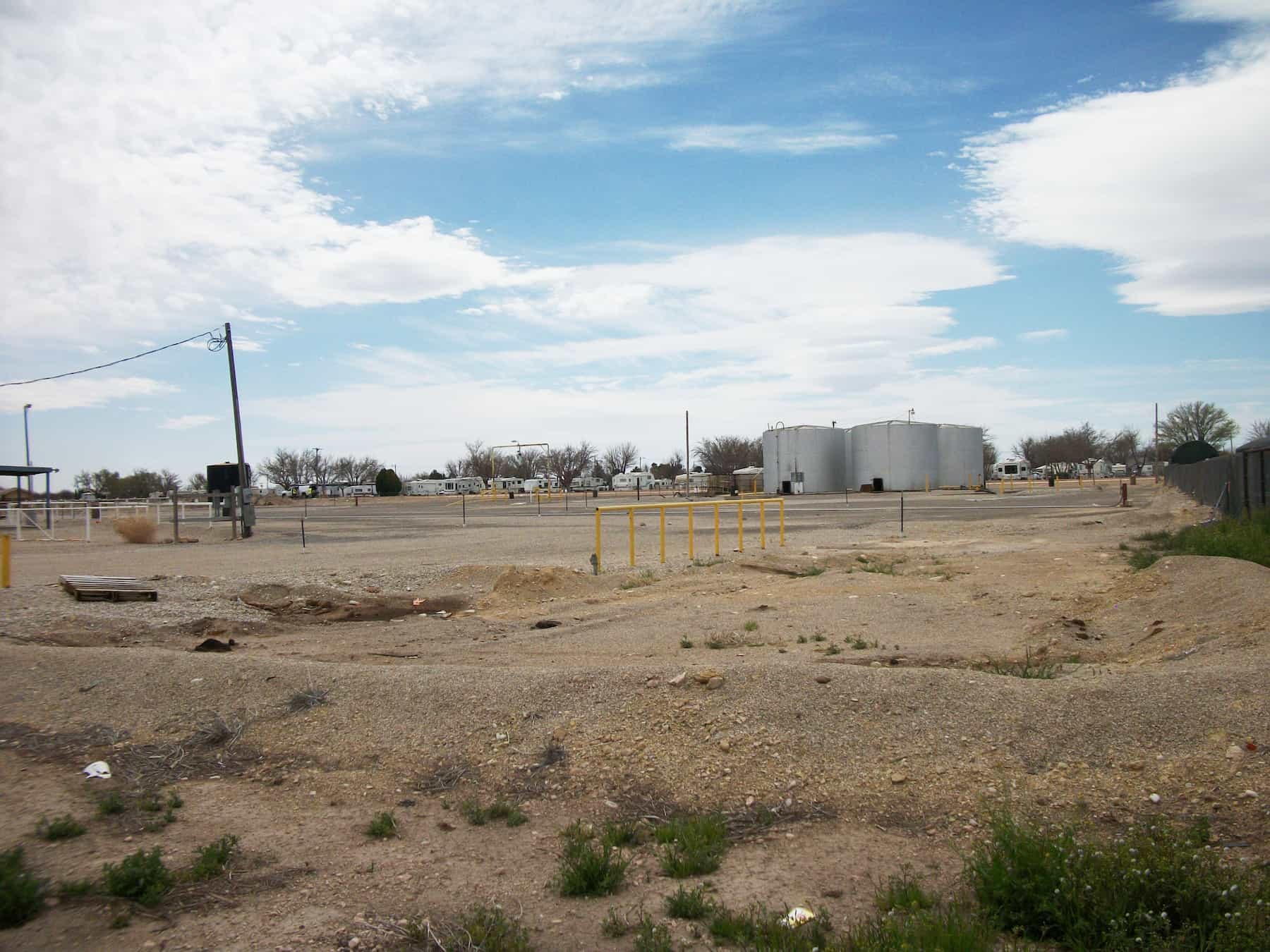

A barren, gravel-covered industrial site with scattered equipment, yellow railings, and large silver storage tanks in the background under a partly cloudy sky. Sparse vegetation grows in the foreground.
A large sinkhole with steep sides extends across a sandy, barren landscape. Construction workers and equipment are visible near the edge, highlighting the scale of the collapse. The sky is clear and blue.

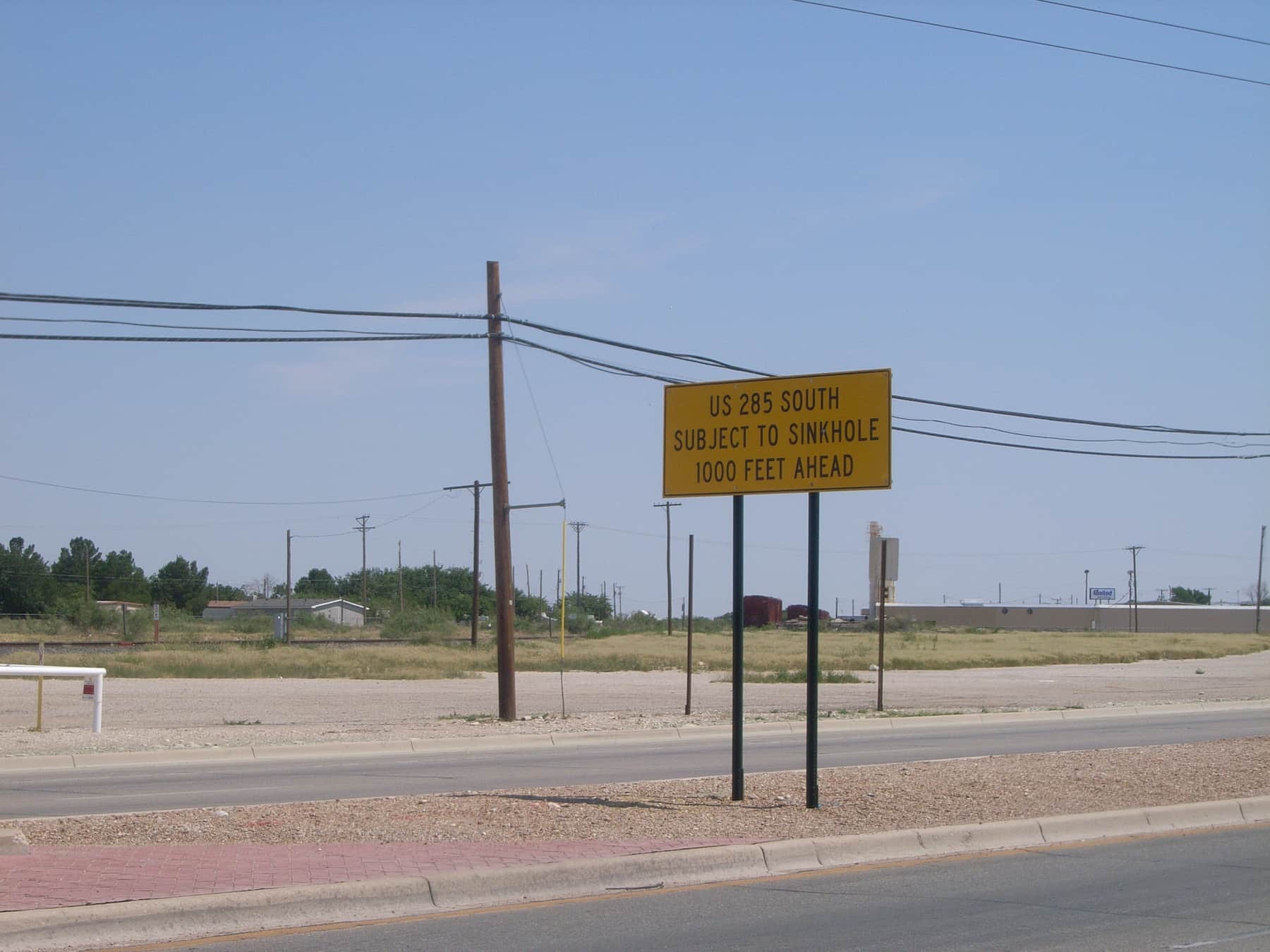

A yellow road sign reads, US 285 South Subject to Sinkhole 1000 Feet Ahead, standing beside a road with power lines and a flat, open landscape in the background.

Early Warning Oversight for a Legacy Brine Cavern in New Mexico

To understand subsurface conditions and provide early warning at a brine cavern near Carlsbad, New Mexico, regulators wanted to establish ongoing monitoring. Similar caverns in the region have previously failed, so RESPEC was tasked to operate and maintain such a system.

Because the site is near homes, major highways, commercial facilities, and an irrigation canal that supports downstream agricultural communities, reliable and continuous data are essential to help protect people, infrastructure, and local water resources.

Delivering Early Warning and Reliable Oversight

At the site. RESPEC handles a comprehensive monitoring and alarm system that tracks surface movement, subsurface pressure, groundwater conditions, and environmental factors that may indicate changes in cavern behavior. Over time, RESPEC expanded the system to include additional sensors that monitor canal water levels, precipitation, temperature, and atmospheric pressure.

All data are collected continuously and transmitted in real time to a secure, web‑based server. RESPEC manages a tiered alarm system with predefined thresholds that trigger alerts if conditions change or if data transmission is interrupted. Lower‑level alerts notify project engineers, while higher‑level alerts immediately notify local emergency‑response personnel, which enables rapid coordination when needed.

Reducing Risk Through Continuous Monitoring

Through continuous system operation, data management, and alarm oversight, RESPEC provides dependable early‑warning capability for a sensitive site. The monitoring program reduces uncertainty, supports informed decision‑making, and plays a key role in protecting surrounding communities and critical infrastructure.
